Seismic Support
Built: 1999
Gross Tonnage: 1129 T
Fuel oil capasity: 1038 m3
MAIN DIMENSIONS
Length O.A (LOA): 51,30 M
Length P.P.: 43,80 M
Breadth: 12,00 M
Draft loaded: 5,20 M
Draft in ballast: 4,00 M
Moulded depth: 6,20 M
Air draft: 27,50 M
Gross Tonnage 1129 T
Deadweight: 1127 T
Net Tonnage: 339 T
PROPULSION MACHINERY
Main engines: 2 x 1800 BHp, ABC Diesel 6MDZC,1000 RPM
Main Gear: 2 x Scana Volda CP/54 ACG 450/PF565/1
Shaft generators: 2 x Stamford Type.HC.M634H2,700 kw each.
Propeller: 2 x 4 bladed Scana Volda, Ø= 2500, 200RPM
AUXILLIARY MACHINERY
Aux. 1: 1 x Caterpillar 3306, 184 kw
Bow thruster: 1 x Schottel water/jet, 550kw
Rudder: 2 x Volda high lift rudders
Steering Gear: 2 x Ulstein Tenfjord SR 622
CAPACITIES
Fuel Oil (MGO) MGO 1008 m3 + Autodiesel 30m3
Fresh water: 32 m3
Ballast water: 485 m3
Fuel pump capacity: 90 m3/h at 3,5 bar
NAVIGATION & COMMUNICATION EQUIPMENT
HF/MF/DSC: Skanti TRP1000, TT3020C and TT 3617A
VHF: 2 x Sailor
1 x Sailor DSC
1 x Skanti DSC
VHF, portable: 3 x Jotron
UHF: 4 x Motorola
Radar: 3 cm Furuno FAR-2117, Arpa
Radar: 10 cm Furuno FAR-2137S, Arpa
Gyro: Simrad GC-85
DGPS: Furuno GP 80
GPS Compass: Furuno SC 60
El.Chart: Dual TechDis T-2138 A
Navtex: ICS Nav 5
Auto. Id. System: Furuno FA-100. AIS
Epirb: Tron 40S MK II
Sart: 2 x Tron sart
Autopilot: Robertson AP9MK III
CLASS
BV +HULL, +MACH, AUT-UMS (SS), SPS 2008
Built: Voldnes Skipsverft AS, Norway, build no. 57,
Year 1999
Call sign: ZDHF 4
BV ID Number: 34262 T
MMSI Number: 236310000
SPEED & CONSUMPTION
Max speed: 13 knots = 12 m3/ day
Service speed: 11 knots= 10m3/ day
Escort speed: 4,5 knots = 4 m3/ day
Bollard pull: 34 tons
DECK MACHINERY
Deck crane: Dreggen jib crane, SWL 8 tones at 12m
Streamer winch: Capacity 6000m. of Ø = 63mm cable

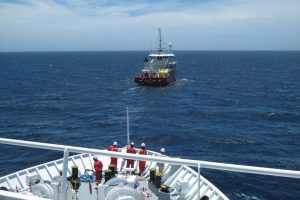

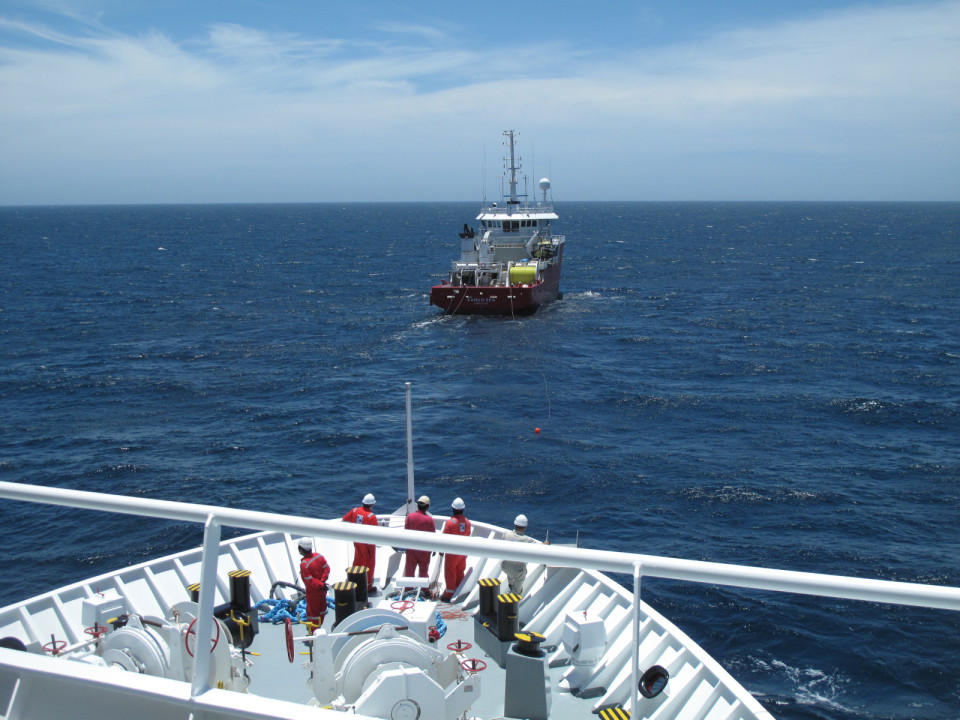

Fuel winch: Capacity 210 m with 5” hose
Ballast treatment plant: MMC Green Technology, 100 m3
TS-Dip winch: High speed testing winch, 2500 m. rope
Towing hook: Strainstall, SWL 45 tones
Incinerator: Teamtec Golar OG120
Workboat davit: Vestdavit, Type: PLR-15000, SWL: 15 tons
ELECTRIC POWER
440 V, 230 V all 60 Hz
RESCUE EQUIPMENT
MOB-boat: Palfinger RRB 500 with 60 Hp outboard,
approved for 6 persons.
Liferafts: 4 x 25 persons
Lifesaving capacity: 46 persons
Dacon Rescue Scoop: 1 pcs port side Boatdeck
ACCOMMODATIONS
4 x 1 bed cabin with bathroom
4 x 2 bed cabin with bathroom
2 x 6 bed with bathroom
